C1121-4P Specification |
|
| Product Code | C1121-4P |
| Product Description | ISR 1100 4P Dual GE SFP Router |
| Memory (default and maximum) | •DRAM: 4 GB Only C1111X-8P,C1121X-8P,C1126X,C1127X, C1161X models have 8GB DRAM •Flash: 4 GB Only C1111X-8P,C1121X-8P,C1126X,C1127X, C1161X models have 8GB Flash |
| Console | •Micro USB console (Type A). •RJ45. |
| Micro-USB port (reserved) | •Micro-USB port to support remote LTE diagnostics and monitoring tools (Qualcomm CAIT and Spirent UDM) (USB 3.0). |
| WLAN interfaces | •Multiuser Multiple-Input Multiple-Output (MU-MIMO) allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and •802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU-MIMO). •802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points. •Flexible deployment through the Mobility Express solution is ideal for small to medium-sized deployments. Easy setup allows the 1000 Series (similar to 1815i) to be deployed on networks without a physical controller. •For more information, view the Cisco Aironet 1815i Access Point Data Sheet. |
| Maximum clients | •Maximum number of associated wireless clients: 200 per Wi-Fi radio; in total 400 clients per access point. C1109-4PLTEP and C1109-4PLTEW models come with default dual W-ANTM2050D-RPSMA external antenna and all modem have default 8.8 AP autonomous or Mobility Express release. Option to select 8.8 CAPWAP WLC image. |
|
Authentication and security |
•AES for Wi-Fi Protected Access 2 (WPA2). •802.1X, RADIUS AAA. •802.11r and 802.11i. |
|
802.11ac |
•2x2 SU-MIMO/MU-MIMO with two spatial streams. •Maximal Ratio Combining (MRC). •20-, 40-, and 80-MHz channels. •PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz). •Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx). •802.11 Dynamic Frequency Selection (DFS). •Cyclic Shift Diversity (CSD) support. |
|
Software |
•Cisco IOS Software feature set: Universal Cisco IOS XE 16.6.1 Software image or later. C1112, C1113, and C1101 models support starting with IOS XE 16.8.1 Software image or later. C1118, C1111X-8P and C1109 models support with IOS XE 16.9.1 Software image or later. •Cisco IOS Software feature set: C1120 and C1160 models Universal Cisco IOS XE 16.11.1 Software image or later. •Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 (migration to 8.8 starting March, 2019 and 8.8 for 1101 and 1109 Models) MR1 or later. |
| Serial WAN interface and protocol | •Support for both synchronous and bisync modes. •Synchronous maximum speed of up to 8 Mbps. •Support for bisync modes. •Support for network clock synchronization. •EIA-232, EIA-449, EIA-530, EIA-530A, V.35, and X.21. |
|
Inline PoE |
•Optional internal adapter for inline PoE on 4 switch ports for IP phones or external wireless access points; 802.3af-compliant PoE or 802.3at-compliant PoE+. |
|
External power supply |
Product power specifications: C111X, C1120 and C1160 Models •AC input voltage: Universal 100 to 240 VAC. •Frequency: 50 to 60 Hz. •Maximum output power: 66W (default). •Output voltages: 12 VDC. •Optional PoE and PoE+: -Single 150W power supply required for Cisco 1100-8P series router -Single 115W power supply required for Cisco 1100-4P series router •External output voltage: 48 VDC.C1101-4PLTEPWX and C1109-4PLTE2PWX Models: •AC input voltage: Universal 100 to 240 VAC. •Frequency: 50 to 60 Hz. •Maximum output power: 66W (default iTemp for C1109-4PLTE2PWX Models). •Output voltages: 12 VDC.C1101-4P, C1101-4PLTEP,C1109-2PLTE, and C1109-4PLTE2P Models: •AC input voltage: Universal 100 to 240 VAC. •Frequency: 50 to 60 Hz. •Maximum output power: 30W (default iTemp for Models). •Output voltages: 12 VDC. |
|
USB 3.0 |
•USB devices supported: -USB eTokens and USB flash memory •Devices USB 3.0 supports to be connected externally. View the USB Device Support Data Sheet . |
|
EDs |
•WWAN (green/amber). •SIM status (green/amber). •Received signal strength indication (RSSI) bar (green). •3G/LTE service (green/amber). •GPS (green/amber). •Speed and link for Gigabit Ethernet WAN port (green). •Speed and link for all Fast Ethernet LAN ports (green). |
|
Physical dimensions (H x W x D) |
C111X Models •1.75 x 12.7 x 9.6 in. (44 x 323 x 244 mm) (includes rubber feet on LTE models). •1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet on non-LTE models).C1120 Models •1.65 x 12.7 x 8.9 in. (41.9 x 322 x 226 mm).C1160 Models •1.65 x 10.8 x 7.85 in. (41.9 x 274 x 199 mm).C1101-4PLTEP and C1101-4PLTEPWX Models •1.73 x 9.75 x 6.6 in. (43.9 x 247.6 x 167.6 mm) (includes rubber feet models).C1101-4P Models •1.1 x 7.5 x 6.0 in. (27.9 x 190.5 x 152.4 mm) (includes rubber feet models).C1109-2PLTE Models •1.27 x 8.4 x 6.0 in. (32.3 x 213.4 x 152.4mm) (includes rubber feet models).C1109-4PLTE2P and C1109-4PLTE2PWX Models (ship default with dual W-ANTM2050DRPSMA Wi-Fi antennae) •1.71 x 11.16 x 9.8 in. (43.4 x 283.5 x 248.9 mm) (includes rubber feet models).Pluggable •0.85 x 2.5 x 3.88 in. (21.6 x 63.5 x 98.5 mm). |
|
Standard safety certifications |
•UL 60950-1.and EN 60950-1. •CAN/CSA C22.2 No. 60950-1. •CB to IEC 60950-1, 2 nd edition with all group differences and national deviations. |
|
EMC emissions |
•EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, and EN61000-6-1. |
|
EMC immunity |
•EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11), and EN300-386. |
|
Radio immunity |
•EN301 489-1, EN 301 489-7, and EN301 489-24. |
|
Cellular radio |
•EN 301 908-1, EN 301 908-2, EN 301 511, 47 CFR Part 22, 47 CFR Part 24, and EN 301 908-13. |
|
Environmental operating range |
•Nonoperating temperature: -4° to 149°F (-20° to 65°C). •Nonoperating humidity: 5% to 95% relative humidity (noncondensing). •Nonoperating altitude: 0 to 15,000 ft (0 to 4570 m). •Operating temperature: 32° to 104°F (0° to 40°C). C1101 support 32° to 113°F (0° to 45°C). C1109-2PLTE support 32° to 122°F (0° to 50°C). C1109-4PLTE2P and C1109-4PLTE2PW models support -4° to 131°F (-20° to 55°C). •Operating humidity: 10% to 85% relative humidity (noncondensing). •Operating altitude: 0 to 10,000 ft (0 to 3000 m at 30°C). Operating altitude: 0 to 10,000 ft (0 to 3000 m at •35°C for C1109-2PLTE models). Operating altitude: 0 to 10,000 ft (0 to 3000 m at 40°C for C1109-4PLTE2P and C1109-4PLTE2PW models). |
C1121-4P

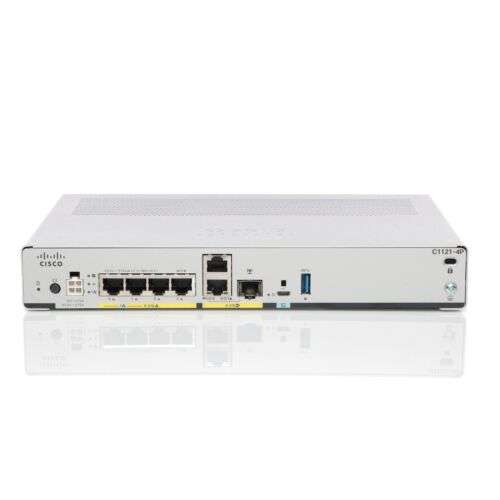

| Cisco C1121-4P Router |
ISR 1100 4P Dual GE SFP Router |
| Optional | |
| 2 WAN, 4 LAN | |
| In stock | |
 |
| Brand |
Cisco |
|---|
Call for price
